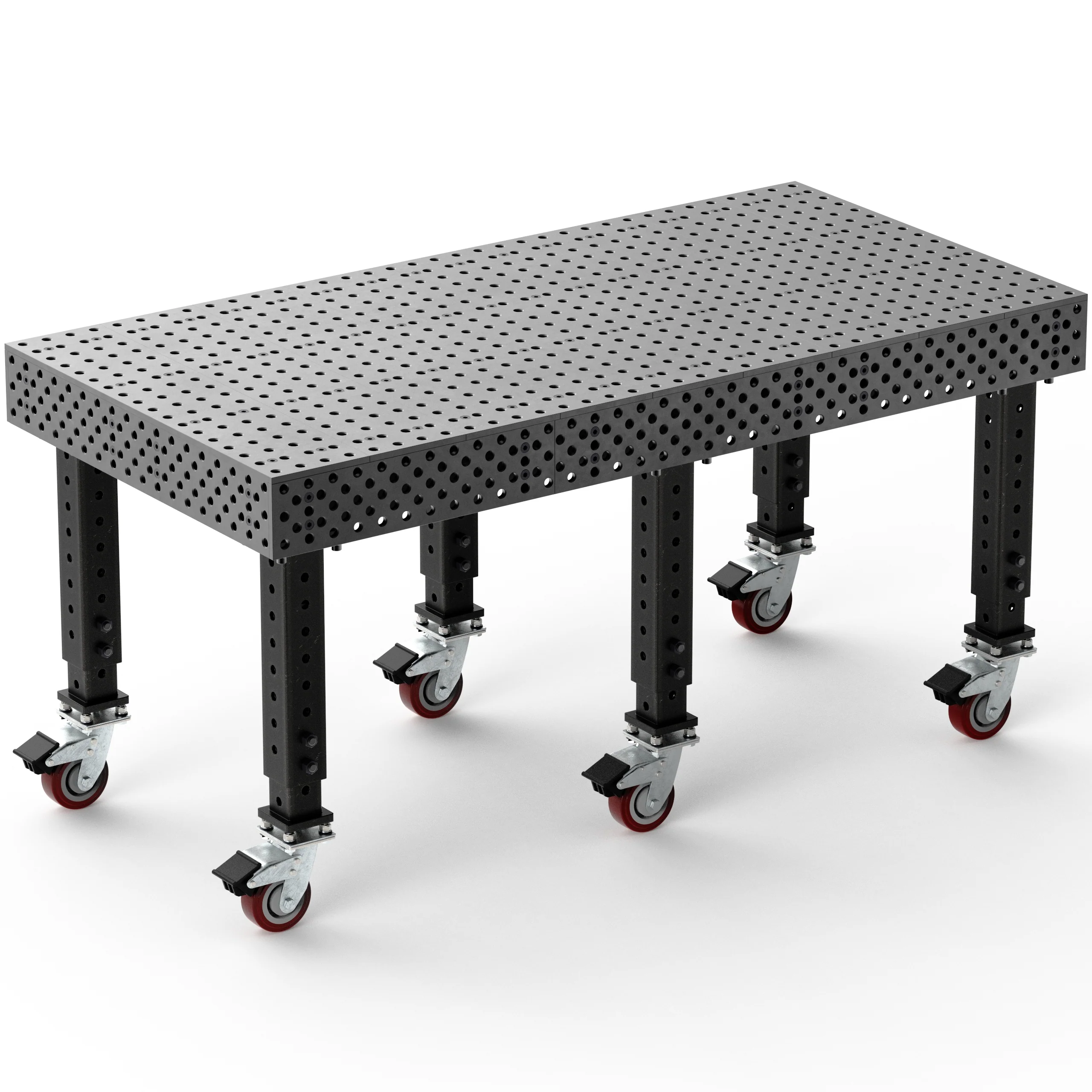

Alpha, 5-Sided, 6' x 3' (72" x 36") Table, 5/8" System

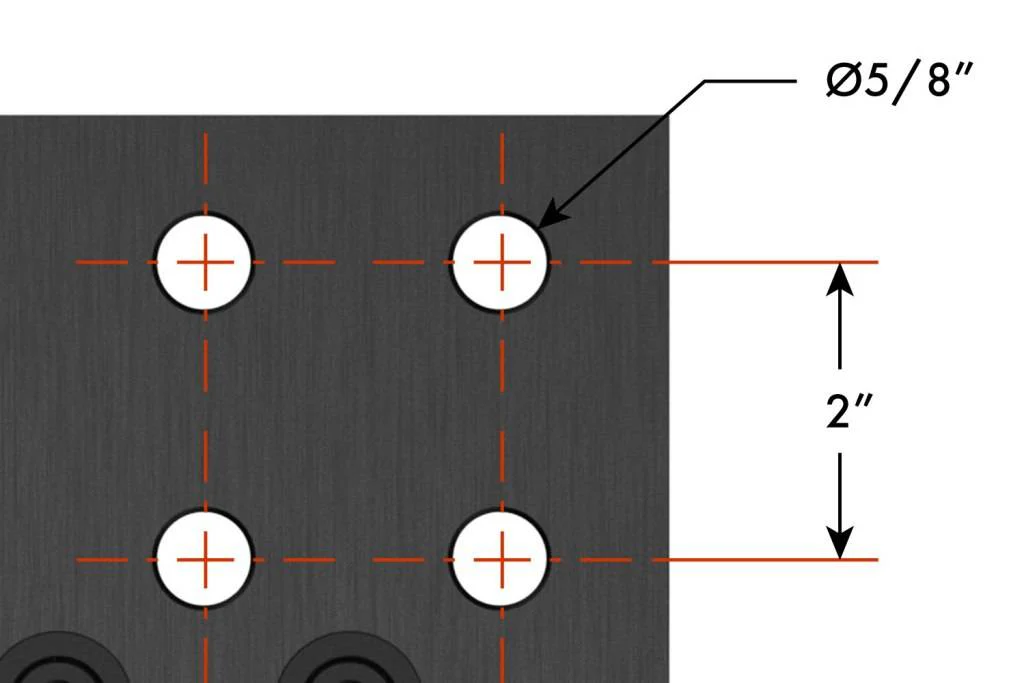

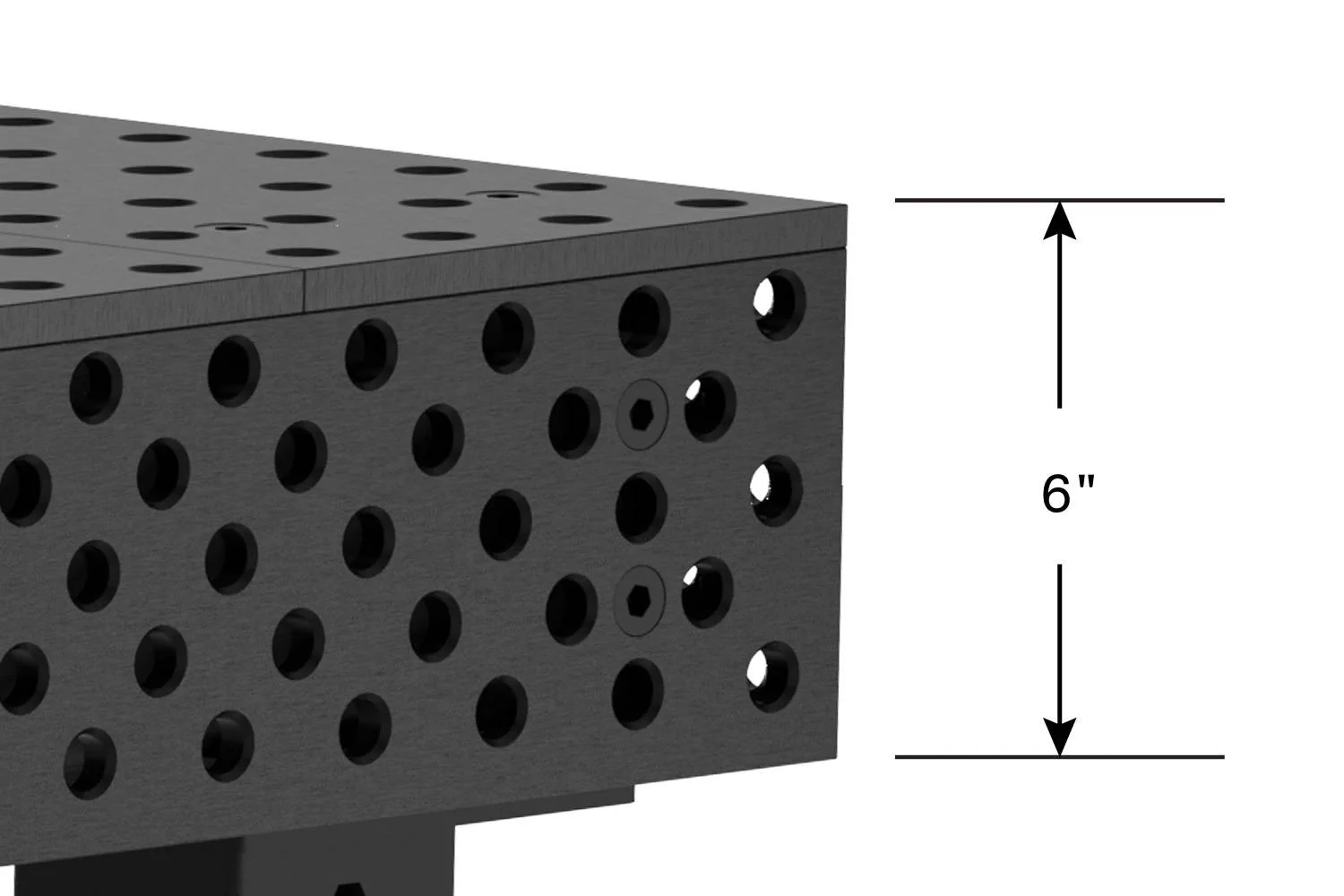

  • Product Dimensions and Specifications: The table measures 72" x 36" with a 6" side height; it features 5/8" boreholes spaced 2" apart for precise fixturing and a five-sided, reversible design to extend usability.
  • Material and Construction: Constructed from P20 top plate (hardness 58-62 HRC) and Q345B sides (hardness 50-55 HRC), with a nitrided finish for enhanced durability; flatness tolerance is ±0.005" per 24" x 24".

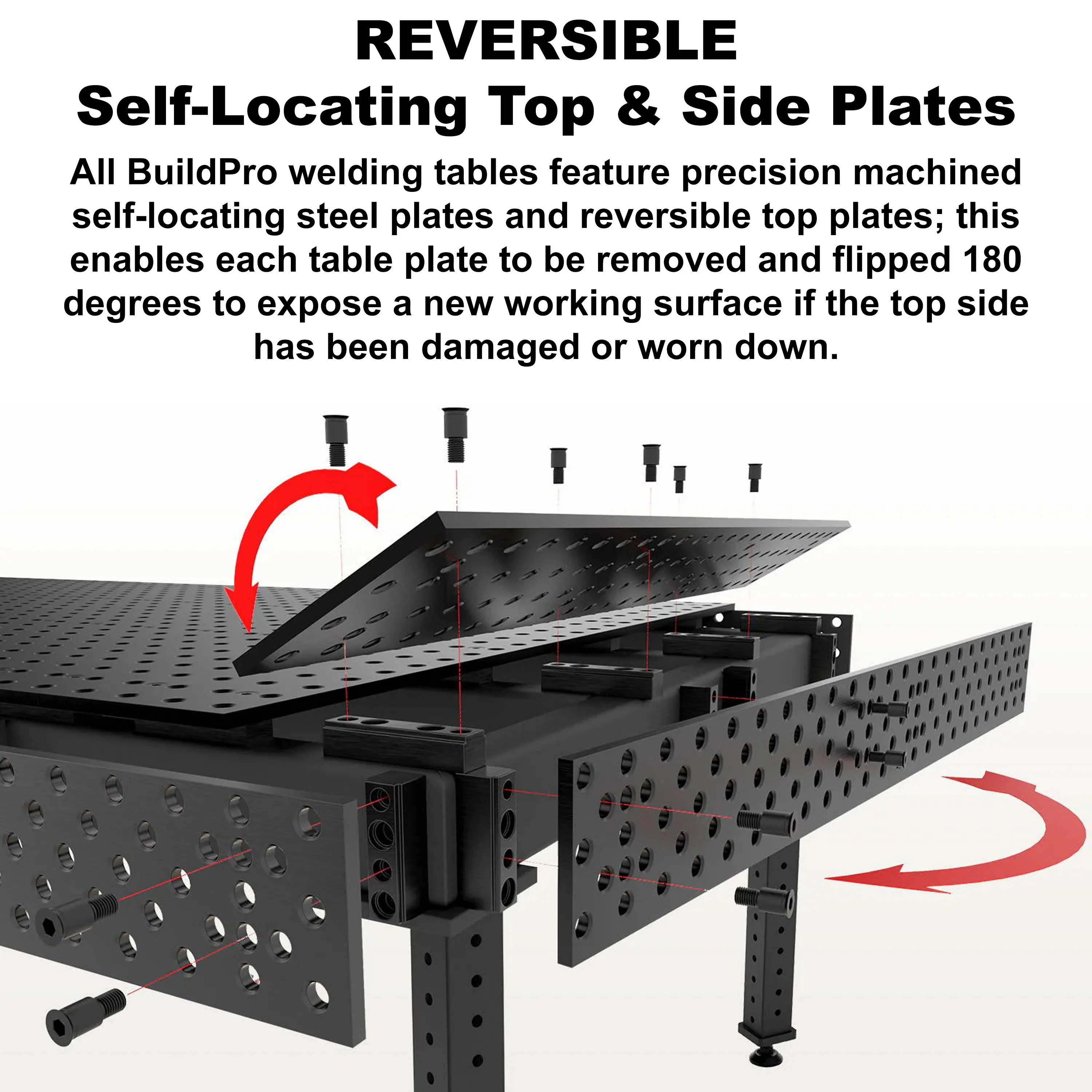

  • Key Features: Includes self-locating, reversible plates that can be rotated 180° when worn; extended hole patterns on sides for added versatility; rated for static loads (specific capacity not detailed).
  • Additional Options and Pricing: Optional leg brace available for older models; pricing requires a quote request, as it is not listed on the page.

* All load capacities are calculated based on static load.
* If you have the legacy model that comes with yellow round legs, optional Leg Brace Assembly TMLB70A is suggested.

  • Product Dimensions and Specifications: The table measures 72" x 36" with a 6" side height; it features 5/8" boreholes spaced 2" apart for precise fixturing and a five-sided, reversible design to extend usability.
  • Material and Construction: Constructed from P20 top plate (hardness 58-62 HRC) and Q345B sides (hardness 50-55 HRC), with a nitrided finish for enhanced durability; flatness tolerance is ±0.005" per 24" x 24".
  • Key Features: Includes self-locating, reversible plates that can be rotated 180° when worn; extended hole patterns on sides for added versatility; rated for static loads (specific capacity not detailed).
  • Additional Options and Pricing: Optional leg brace available for older models; pricing requires a quote request, as it is not listed on the page.

* All load capacities are calculated based on static load.
* If you have the legacy model that comes with yellow round legs, optional Leg Brace Assembly TMLB70A is suggested.

Select 6x Legs
From $1,650.00

Original: $5,500.00

-70%
Alpha, 5-Sided, 6' x 3' (72" x 36") Table, 5/8" System—

$5,500.00

$1,650.00

Description

  • Product Dimensions and Specifications: The table measures 72" x 36" with a 6" side height; it features 5/8" boreholes spaced 2" apart for precise fixturing and a five-sided, reversible design to extend usability.
  • Material and Construction: Constructed from P20 top plate (hardness 58-62 HRC) and Q345B sides (hardness 50-55 HRC), with a nitrided finish for enhanced durability; flatness tolerance is ±0.005" per 24" x 24".
  • Key Features: Includes self-locating, reversible plates that can be rotated 180° when worn; extended hole patterns on sides for added versatility; rated for static loads (specific capacity not detailed).
  • Additional Options and Pricing: Optional leg brace available for older models; pricing requires a quote request, as it is not listed on the page.

* All load capacities are calculated based on static load.
* If you have the legacy model that comes with yellow round legs, optional Leg Brace Assembly TMLB70A is suggested.
